Pulsating Vacuum Desktop Steam Sterilization

The Pulsating vacuum desktop steam sterilizations are safely auto controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterili.

Send Inquiry

Product Description

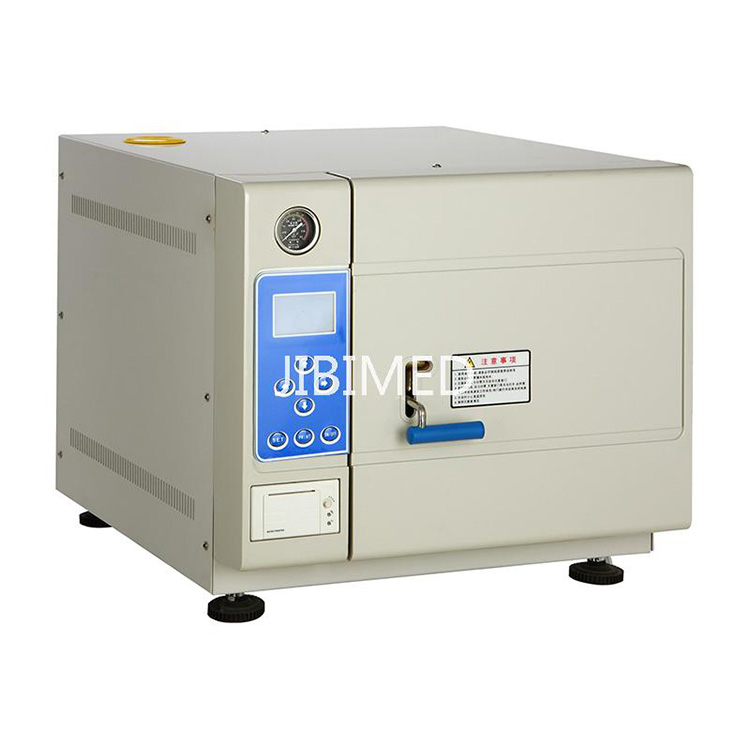

Pulsating Vacuum Desktop Steam Sterilization


Pulsating Vacuum Desktop Steam Sterilization



Use

The Pulsating vacuum desktop steam sterilizations are safely auto controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.



Characteristics


• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instruments less than 0.2%.

• LCD display working status, touch keys.

• The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow,mult apertures and inset pipes. It makes sure the instrument can be sterilized completely.

• Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.

•Pulsating vacuum desktop steam sterilization is installed with BOWIE&DICK which measures the penetration of water steam.

• Pulsating vacuum desktop steam sterilization has vacuum test which can make sure the ability of vacuum testing.Fast and independent steam generator.

• Built-in mini printer which can record the sterilizing information.

• Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.

• Pulsating vacuum desktop steam sterilization inactivates the HIV, HBV, BSE, and bacillus efficiently.



Technical Data ofPulsating vacuum desktop steam sterilization


MODEL

TM-XD35DV

TM-XD50DV

TM-XD90DV

Technical Data

Sterilizing chamber volume

35L

φ300×500mm

50L

φ340×550mm

90L

φ400×720mm

Working pressure

0.22Mpa

Working temperature

134℃

Temperature adjust range

105-134℃

Timer range

0-99min

Heat average

≤±1℃

Power

AC220V 50Hz/2.7KW

AC220V 50Hz/4KW

Dimension(mm)

730×550×510

770×600×540

1000×690×610

Exterior package dimension(mm)

810×680×650

880×730×700

1070×740×700

G.W/N.W

115/93Kg

130/106Kg

200/180Kg
