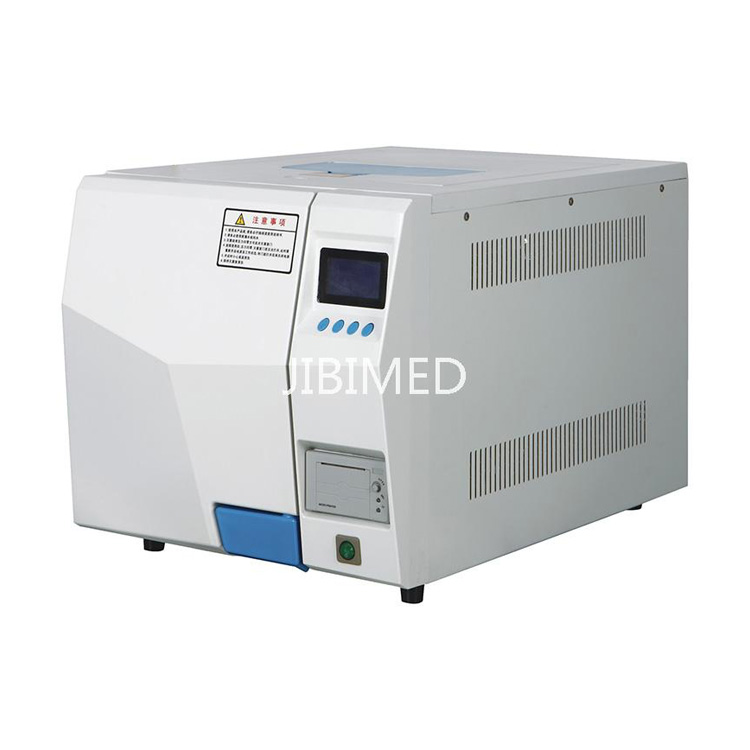

Pulsating Vacuum Desktop Steam Automation Sterilizer
Use
The Pulsating Vacuum Desktop Steam Automation Sterilizers are safely auto controlled, which are designed for the dental clinics, hospitals, school lab, scientific research institutions and laboratory. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culture medium and biological dressing, food, etc.
Characteristics of Pulsating Vacuum Desktop Steam Automation Sterilizer
• Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instruments less than 0.2%.
• LCD display working status, touch keys.
• The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow,muti apertures and inset pipes. It makes sure the instrument can be sterilized completely.
• Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.
• Pulsating Vacuum Desktop Steam Automation Sterilizer is installed with BOWIE&DICK which measures the penetration of water steam.
• It has vacuum test which can make sure the ability of vacuum testing.Fast and independent steam generator.
• Built-in mini printer which can record the sterilizing information.
• Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection, Alarm system.
• Pulsating Vacuum Desktop Steam Automation Sterilizer inactivates the HIV, HBV, BSE, and bacillus efficiently.
• This product is designed for open water tank, water purification, sewage tank separation, convenient and intuitive.
Technical Data of Pulsating Vacuum Desktop Steam Automation Sterilizer
MODEL |
TM-XD12DV |
TM-XD20DV |
TM-XD24DV |
Technical Data |
|||
Sterilizing chamber volume |
12L φ200×370mm |
18L φ250×360mm |
24L φ250×470mm |
Working pressure |
0.22Mpa |
||
Working temperature |
134℃ |
||
Temperature adjust range |
105-134℃ |
||
Timer range |
0-99min |
||
Heat average |
≤±1℃ |
||
Power |
AC220V.50Hz/1.8KW |
AC220V.50Hz/2KW |
AC220V.50Hz/2KW |
Dimension(mm) |
560×470×400 |
560×470×400 |
675×470×400 |
Exterior package dimension(mm) |
655×560×495 |
655×560×495 |
765×560×495 |
G.W/N.W |
48/43Kg |
52/47Kg |
58/53Kg |
