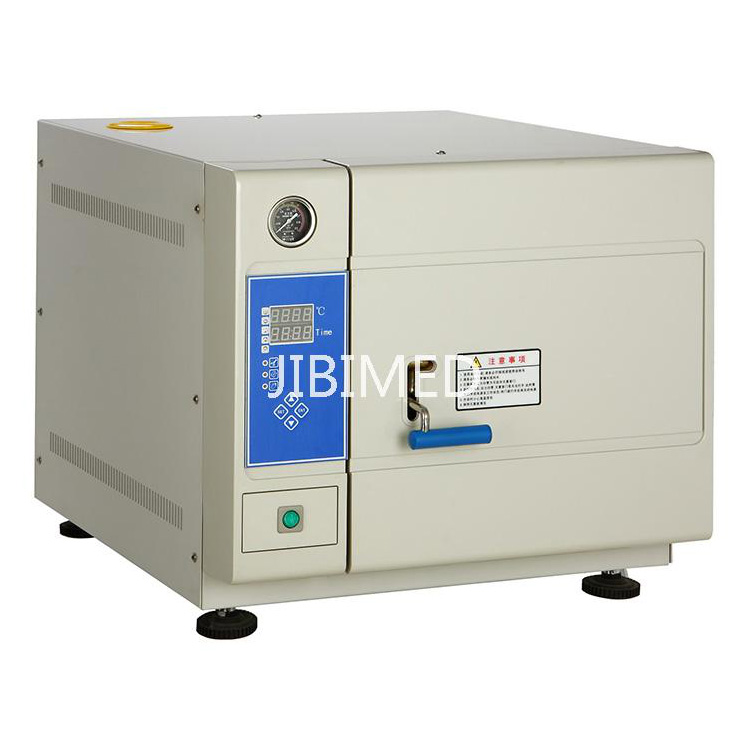

Table Top Steam Sterilizer Or Autoclave
Use
The Table Top Steam Automation Sterilizer utilizes saturated steam to rapidly and efficiently sterilize articles. It can be used in hospitals, public health centers, health stations,clinics in factories and mines, scientific research institutes, etc, to sterilize medical equipment, surgical dressings, glass utensils, solutions,substrata. Table Top Steam Automation Sterilizer can also be used as cooker in plateau areas and be used to make high quality drinking water in industrial and mining enterprises.
Characteristics ofTable Top Steam Automation Sterilizer
• For 4~6 minutes rapidly sterilizer.
• Digital display of working status, touch type key.
• Table Top Steam Automation Sterilizer is with protection of water lacking.
• Exhaust the h 3 fixed .cycles of sterilizing program and adjustable for user.
• The whole process of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
• Steam water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
• Safe cool air automatically.
• Door safety lock system.
• With four stainless steel sterilizing plates.
• The chamber of the sterilizer is made of stainless steel.
• Automatically shut off with beep reminding after sterilization.
• Table Top Steam Automation Sterilizer is with drying function.
Technical Data
MODEL |
TM-XD35D |
TM-XD50D |
Technical Data |
||
Sterilizing chamber volume |
35L φ300×500mm |
50L φ340×550mm |
Working pressure |
0.22Mpa |
|
Working temperature |
134℃ |
|
Temperature adjust range |
105-134℃ |
|
Timer range |
0-99min |
|
Heat average |
≤±1℃ |
|
Power |
2.7KW/AC220V.50Hz |
|
Sterilizing plate |
400×200×30(4piece) |
500×250×30(4piece) |
Dimension |
730×550×510 |
770×600×540 |
Exterior package dimension |
810×680×650 |
880×730×700 |
G.W/N.W |
90/73Kg |
105/86Kg |
