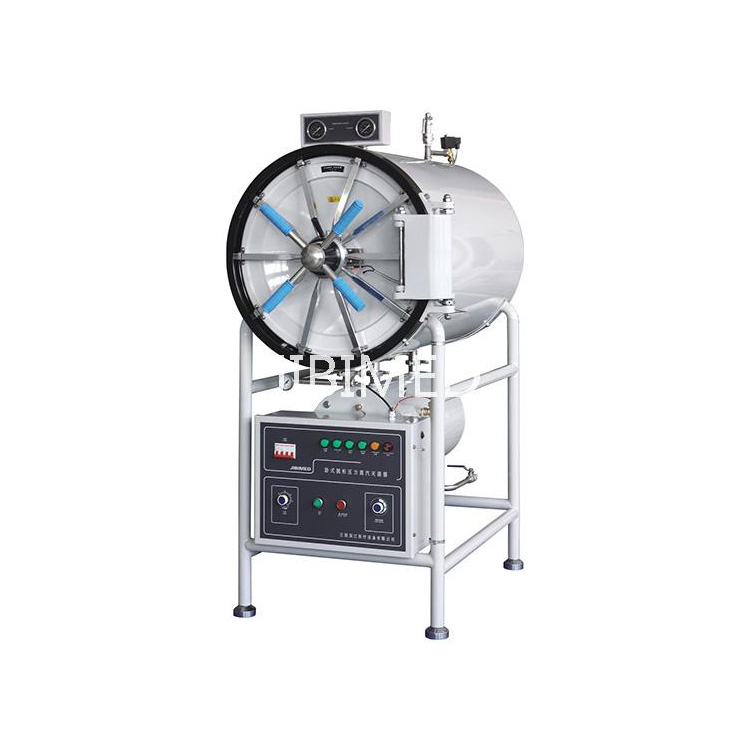

Horizontal Cylindrical Pressure Steam Automation Autoclave

Horizontal Cylindrical Pressure Steam Automation Autoclave

Use

The Horizontal Cylindrical Pressure Steam Automation Autoclave, which is adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.

Characteristics ofHorizontal cylindrical pressure steam sterilization

• Auto manually controlled the sterilizing process, easy to operate.

• Horizontal cylindrical pressure steam sterilization is with drying function, suitable for the medical dressing drying.

• With over temperature, over pressure auto protect.

• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the indoor doesn't close well.

• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.

• Automatically cut off the power if the water lack happened, and alarm at the meanwhile.

• Horizontal cylindrical pressure steam sterilization is fully stainless steel structure.

Technical Data ofHorizontal Cylindrical Pressure Steam Automation Autoclave
