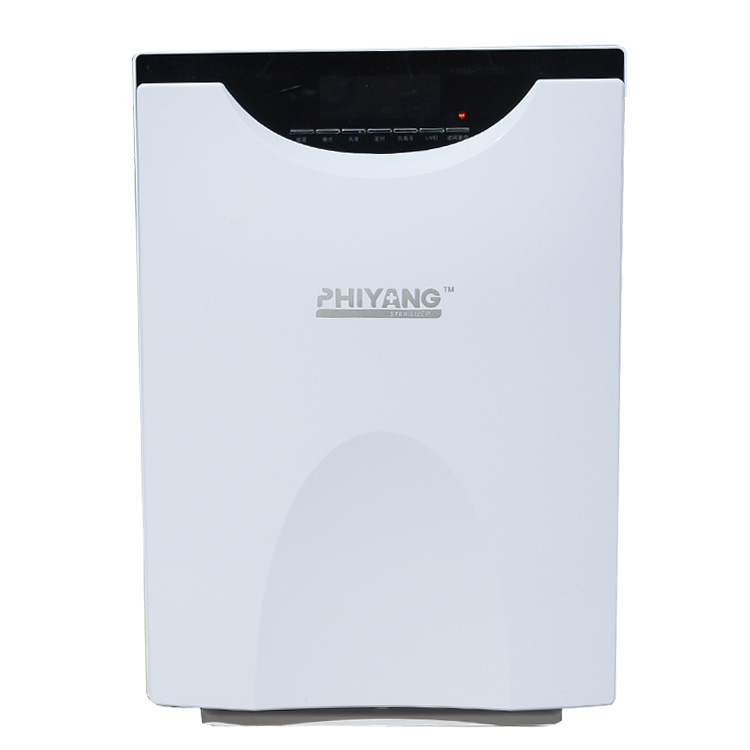

HEPA UV Sterilization Room Air Purifier

HEPA UV Sterilization Room Air Purifier

The HEPA UV Sterilization Room Air Purifier is mainly composed of shell, UV lamp, anion device,Hepa filter, activated carbon filter, motor fan and control system. The sterilization principle is to use the UV lamp to irradiate the circulatory wind, then utilize the circulatory wind to sterilize and disinfect the dynamic air. Combining with the activated carbon filter and anion device , HEPA UV Sterilization Room Air Purifier will continuously sterilize and disinfect the air in the room and keep the air fresh.

Installation and Application Of HEPA UV Sterilization Room Air Purifier

Put the HEPA UV Sterilization Room Air Purifier on the optimal position in the indoor floor, remove all the plastic bags of the 3 filters, plug to 110V/220V power supply socket, then it is ready to be used.

Usage instruction Of HEPA UV Sterilization Room Air Purifier

1. Apply a HEPA UV Sterilization Room Air Purifier in a room of  volume 80 m3. When sterilizing, all the windows and doors should be closed, it is not necessary for the persons to leave the room. The sterilization time should be ≥120 minutes in mid  fan speed.

2. You can choose the sterilization hours by timer on the panel. Once the sterilization hours is set, the air sterilizer will run automatically constantly. After the sterilization hours are finished, the power will cut automatically.

Specification & Technical Parameter Of HEPA UV Sterilization Room Air Purifier

Model No.: FYKX-Y800

Rated Voltage: AC 220V/50Hz, AC 110V/60Hz

Product Size:493mm×194mm×698mm

N.W.:10 KGS

Motor: DC310V

Rated Power: 75w/225w

CADR:441m3/h(PM 2.5)
