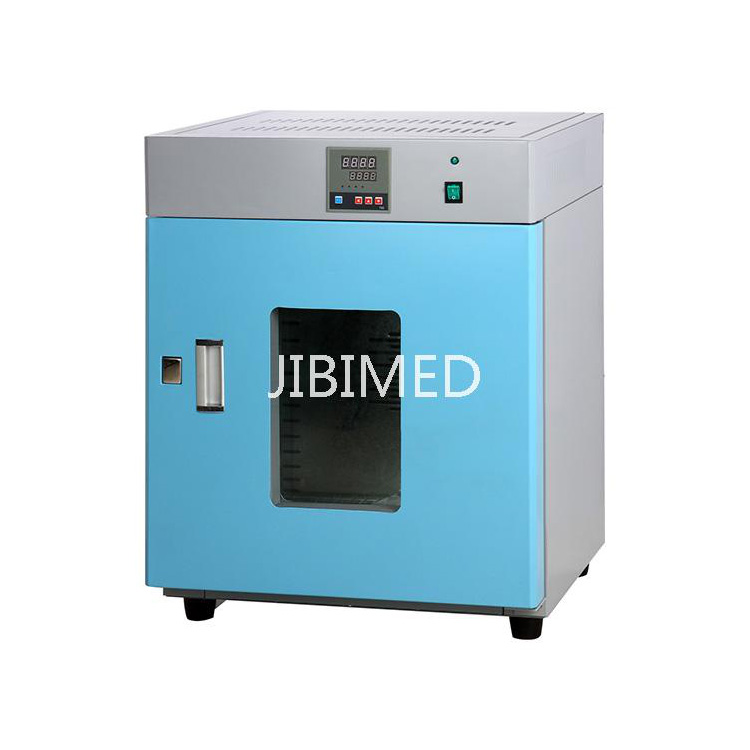

Blast Drying Oven
Characteristics ofblast drying oven
The chamber of the blast drying oven is made up of superior stain steel sheet or the mirror finish stainless steel sheet, and the outside sprayed with plastic power, double decked tempered glass- -observation.
• The chamber of the blast drying oven is made up of superior stain steel sheet or the mirror finish stainless steel sheet, and the outside sprayed with plastic power, doubled ecked tempered glass- -observation,with handsome appearance. and it is safe and convenient to operate on.
• The blast drying oven is controlled by the microcomputer, equipped with temperature setting testing. double digital display and PlD self-setting function.
• Equip with over temperature auto protection Atine setting, undulatory property is small.
• The blast drying oven is equipped with following alarming function, churned up hot air circle, low heat age lose, blasting and heating can be separately operated.
• Hot air circle system is made up of exit fans and suitable f?n duct with low noisy, the temperature in the chamber is uniformity.
Technical Data ofblast drying oven
MODEL |
ZHG-9040A(S) |
ZHG-9070A(S) |
ZHG-9140A(S) |
ZHG-9240A(S) |
ZHG-9640A(S) |
Technical Data |
|||||
Power supply |
AC220V 50Hz |
||||
The range of temperature |
50℃-300℃ |
||||
Heat average |
±1℃ |
||||
Followed-alarming |
+5℃ |
||||
Power |
1000W |
1500W |
2000W |
2500W |
4500W |
Chamber dimension(mm) |
350x350x350 |
450x350x450 |
550x450x550 |
600x500x750 |
800x800x1000 |
Dimension(mm) |
500x560x705 |
650x560x805 |
750x660x905 |
800x710x1105 |
1000x1010x1355 |
